On 2/20/2013, Tepco investigated inside of torus room of reactor1. [URL 1]
Torus room is where the facility called S/C (suppression chamber) is located. S/C is a part of the coolant system, fractured fuel debris maybe scattered in it, but the details are not known.
(cf, [Column] 3 facts to support the hypothesis that fractured nuclear fuel is in individual stages of nuclear reaction [URL 2])

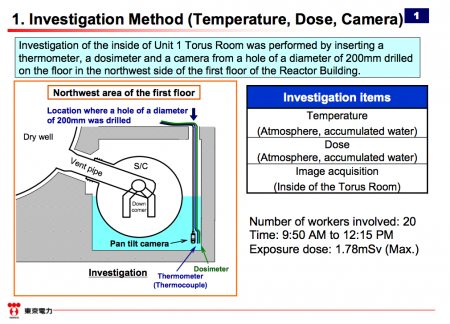

Tepco inserted thermometer, camera, dosimeter etc from the hole drilled on the wall.

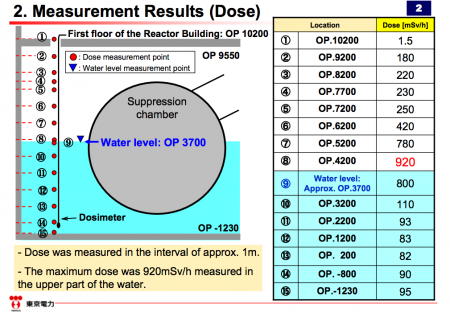

As a result, they found out the highest radiation level was 920 mSv/h, where was above the water surface.
The radiation level goes high toward the surface of water, but it also goes high as it goes close to S/C, which may suggest the fractured fuel debris is in S/C.
http://www.tepco.co.jp/nu/fukushima-np/handouts/2013/images/handouts_130220_03-j.pdf
Iori Mochizuki
_____
Français :
920 mSv/h au rez-de-chaussée du réacteur 1 : “Y a-t-il des débris de combustible dans la S/C ?”
Le 20 février 2013, Tepco explore l’intérieur de la salle du tore du réacteur 1. [Lien]
La salle du tore c’est l’endroit où se trouve l’équipement appelé S/C (chambre de surpression). La S/C fait partie du système de refroidissement, il peut y avoir dedans des débris de combustible cassé mais les détails ne sont pas connus.
Tepco y a introduit un thermomètre, une camera, un dosimètre, etc, par le trou foré dans le mur.
Ils ont ainsi constaté que le plus haut niveau de radioactivité était de 920 mSv/h, ce qui était au dessus de la surface de l’eau.
Le niveau de radioactivité augmente au fur et à mesure qu’on s’élève au-dessus de la surface de l’eau mais il augmente aussi quand on se rapproche de la S/C, ce qui peut laisser penser qu’il y a des débris de combustible cassé dans cette S/C.
Source : http://www.tepco.co.jp/nu/fukushima-np/handouts/2013/images/handouts_130220_03-j.pdf
Fukushima Diary can accept donation directly at bank.
Fukushima Diaryは銀行口座で直接寄付を受けられるようになりました。
情報は以下のとおり。
BANK : PIRAEUS BANK ROMANIA
USD
IBAN : RO53 PIRB 4205 7394 0100 3000
EURO
IBAN : RO87 PIRB 4205 7394 0100 2000
SWIFT : PIRBROBU
(FUKUSHIMA DIARY SRL)
Thank you for your donation ご寄付ありがとうございます。
Recurring Donations 毎月引き落とし
Fukushima Diary can accept donation directly at PoBox too. You don't need to write the receiver's name (Only the address below is needed) but you can write it as Mochizuki Iori or Fukushima Diary SRL as well.
Fukushima Diaryは私書箱でも直接寄付などの郵便を受けられるようになりました。下記の住所が記載されていれば受取人の名前を書く必要はありませんが、Mochizuki Iori または Fukushima Diary SRLというように書いても問題ありません。
情報は以下のとおりです。
OFICIUL POSTAL BUCURESTI 22 ROMANIA CASUTA POSTALA 110
Posted in
Tags:
It is alright, according to TEPCO. Everything is fine in the world of TEPCO.
Since the drywell is suppose to be dry and now the suppression doughnut is half surrounded by water, it is a good thing the melted core is inside the doughnut weighting it down. Wouldn’t want to see three reactors and containment shells floating like buoys on their doughnuts out to sea after the next tsunami hits.
given Rac 1 melted out, it’s likely a fiar bit of corium flowed into the S/C.
I doubt that, the melted flow would hang at the bellows before flowing on down. Probably would melt out at the shell pass thrus. Besides, an exit through the support skirt is necessary either by following mechanical paths, burn through or both. Then by the time it built up high enough to enter s/c intakes pipes there are other routes to use as exits.
If any Unit melted around the s/c it was #2, it didn’t explode so the melt could stay together really heating things up.
